Corner
Enclosure Door and
Panel Configurations
|
|

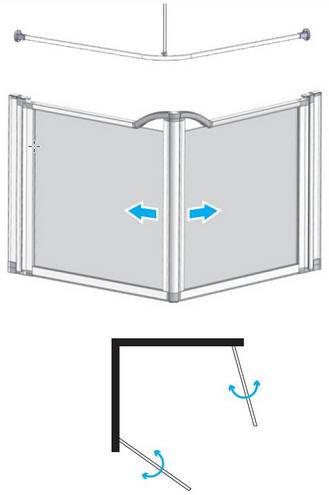

V22
Two single
panel doors
of equal
length to
create a
corner entry
enclosure.
(For
rectangular
enclosure
see V22L/R) |
|
|
|

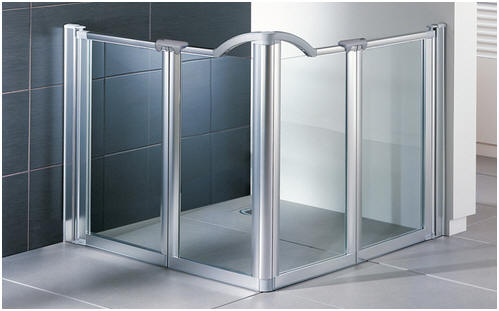

V4L
2 x bi-fold doors to
form a rectangular
enclosure
(Left hand corner) |
|

V4R
2 x bi-fold doors to
form a rectangular
enclosure
(Right hand corner) |
|
|
|

V5L
1 x Fixed panel with
bi-fold door and one
single panel door (LH
Corner) |
|

V5R
1 x Fixed panel with
bi-fold door and one
single panel door
(RH Corner) |
|
|
|

V6L
1 x bi-fold door and
one single panel
door
(LH Corner) |
|

V6R
1 x bi-fold door and
one single panel
door
(RH Corner) |
|
|
|

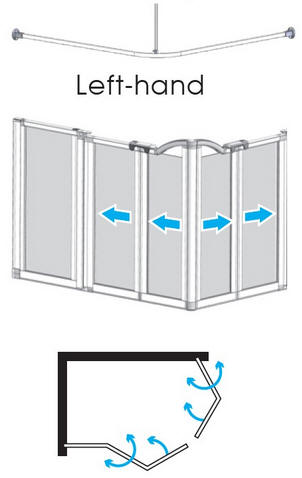

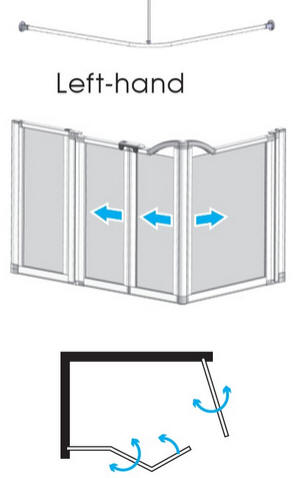

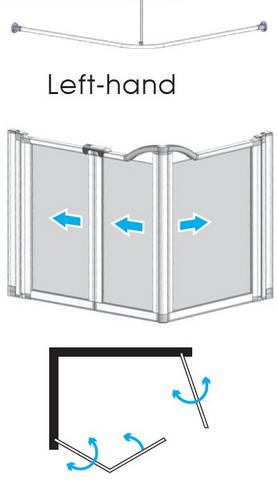

V7L
Corner entry via 2 x
bifold doors + 1 x
fixed panel (LH
corner) |
|

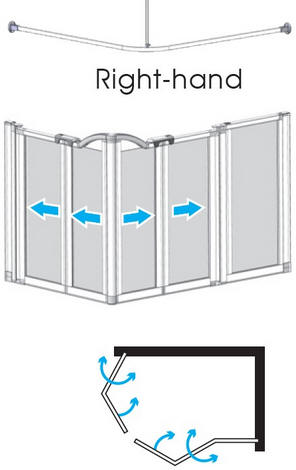

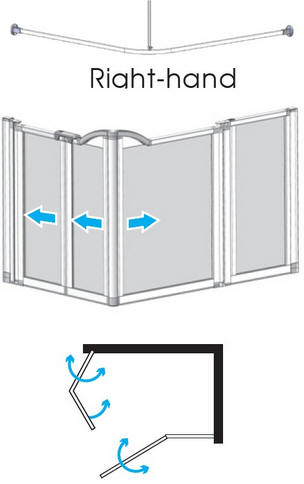

V7R
Corner entry via 2 x
bifold doors + 1 x
fixed panel (RH
corner) |
|
|
|
|

V8R
Corner entry via 2 x
hinged doors + 1
fixed panel
(RH corner) |
|
|
|

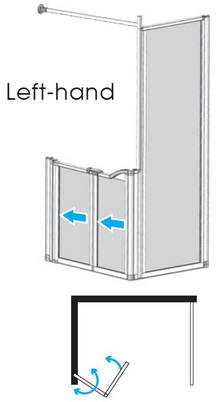

V12FL
Half-height
Bi-Folding Door with
fixed full height
panel and pole
(LH corner)
|
|

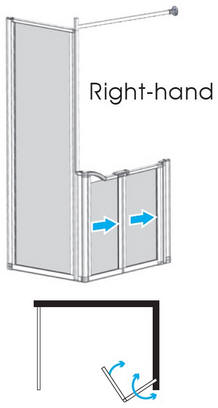

V12FR
Half-height
Bi-Folding Door with
fixed full height
panel and pole
(LH corner)
|
|
|
|

V21L
Half-height corner
enclosure comprising
Bi-Folding Door &
single panel door
combo, with fixed
inline panel
(LH corner)
|
|

V21R
Half-height corner
enclosure comprising
Bi-Folding Door &
single panel door
combo, with fixed
inline panel
(RH corner)
|
|
|
|

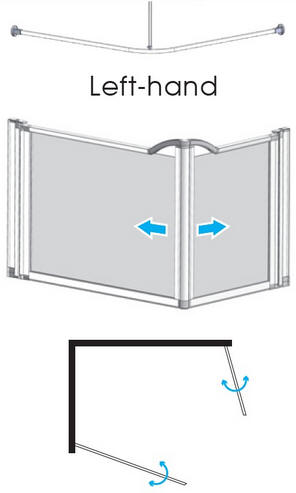

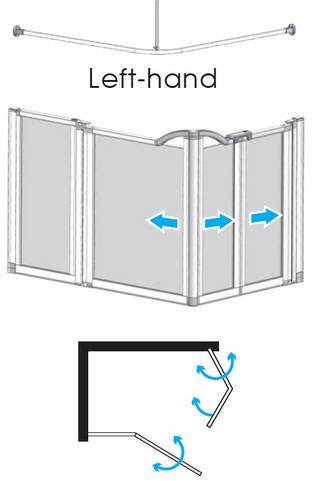

V22L
Two single
panel doors
of unequal
length to
create a
half-height
corner entry
shower
enclosure
(Left Hand
corner) |
|

V22R
Two single
panel doors
of unequal
length to
create a
half-height
corner entry
shower
enclosure
(Right Hand
corner) |
|
|
Alcove door and
panel
Configurations
|

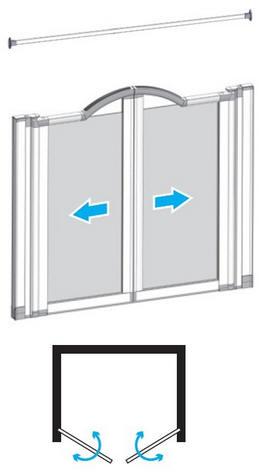

V1
2 x single panel
hinged doors |
|

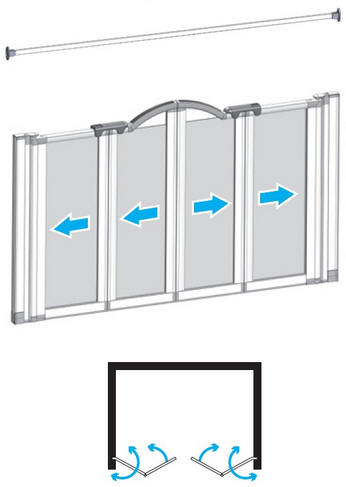

V2
2 x bi-folding
hinged doors |
|
|

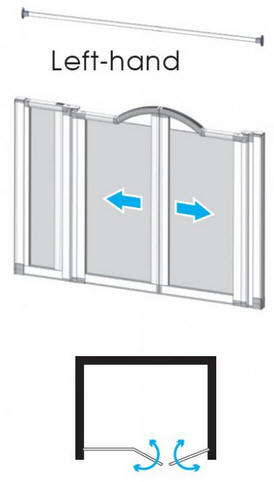

V3L
1 fixed panel (LH) + 2
single panel hinged
doors |
|

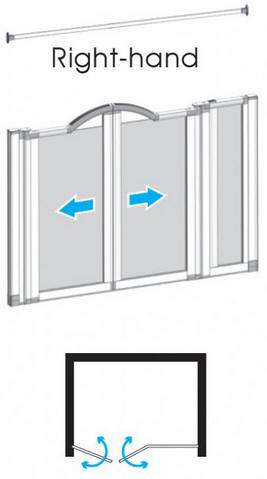

V3R
1 fixed panel (RH) + 2
single panel hinged
doors |
|
|

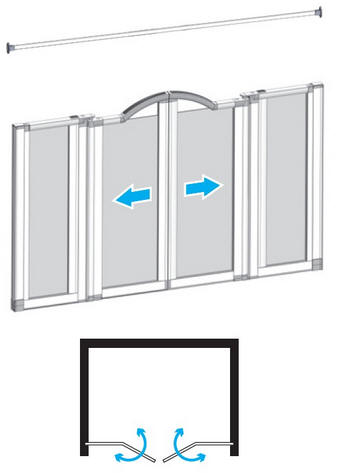

V10
2 x single panel
doors and 2 x fixed
panels.
(For wider alcoves) |
|
Custom door and
panel Configurations
are available to
order.
Please see below for
ideas and examples |
|

V13L
1 x Bi-fold door
(hinged left) |
|

V13R
1 x Bi-fold door
(hinged right) |
|
|
Custom
enclosure
examples |
EASA
EVOLUTION
half height
shower doors
and
enclosures
are not
limited to
the standard
configurations
shown. They
can be
customised
to bespoke
requirements.
For example,
tall (full
height)
panels might
be
incorporated
with half
height doors
in a
configuration
to suit your
specific
needs. Or,
you might
like to add
a floor to
ceiling pole
for added
safety.
For a quote
please don't
hesitate to
call.
Configurations with
fixed floor to
ceiling support pole |
|
|
|
V9L |
V9R |
V14L |
 |
 |
 |
Fixed panel, support
pole and hinged door
+ bi-fold door
(Left hand corner) |
Fixed panel, support
pole and hinged door
+ bi-fold door
(Right hand corner) |
2 X Fixed panels
each with support
pole and hinged
door. Front entry,
left hand corner
config. |
V14R |
V15L |
V15R |
 |
 |
 |
2 X Fixed panels
each with support
pole and hinged
door. Front entry,
Right hand corner
config. |
Front entry via
hinged door + L
shaped fixed panels
and support pole
(LH Corner) |
Front entry via
hinged door + L
shaped fixed panels
and support pole
(RH Corner) |
V16L |
V16R |
V17L |
 |
 |
 |
Fix panel, support
pole and hinged door
+ hinged door -
corner entry
(LH Corner) |
Fix panel, support
pole and hinged door
+ hinged door -
corner entry
(RH Corner) |
Front entry via 2 x
hinged doors. Fixed
end panel + support
pole.
(LH Corner) |
V17R |
V18L |
V18R |
 |
 |
 |
Front entry via 2 x
hinged doors. Fixed
end panel + support
pole.
(RH Corner) |
Front entry via 2 x
bi-fold doors. Fixed
end panel + support
pole.
(LH Corner) |
Front entry via 2 x
bi-fold doors. Fixed
end panel + support
pole.
(RH Corner) |
V19L |
V19R |
|
 |
 |
|
Corner Entry via 2 x
bi-fold doors +
fixed panel with
support pole (LH) |
Corner Entry via 2 x
bi-fold doors +
fixed panel with
support pole (RH) |
|
|
|
|
More examples
(Panel = Panel
or door) |
Single half height
panel |
Single full height
panel |
Two half height
panels |
One full height +
one half height
panel |
 |
 |
 |
 |
|
|
|
|
Three half height
panels |
One full height +
two half height
panels |
Four half height
panels |
One full height + 3
half height panels |
|
|
|
|
 |
 |
 |
 |
|
|
|
|
Five half height
panels |
One full height + 4
half height panels |
|
|
 |
 |
|
|
