Novellini DUO DECK wet room shower floor former

Novellini prefabricated wet room shower floor former with linear waste outlet

Novellini Duo Deck prefabricated wet room floor former with linear waste outlet

Linear drain wet room floor former

The DUO Deck wet room shower floor former provides a gentle preformed slope from two directions towards a linear style waste outlet and is suitable for a timber floor.

A perfect wet room shower can be created in conjunction with wall and floor waterproof tanking kits that ensure your installation remains watertight for many years to come.
If you wish to use large tiles a Novellini Duo Deck minimises the number of cuts that can prove tricky on other types of wet room floor former.
  • Two way fall is suited to large tiles
  • Duo Deck is easily trimmed
  • Lifetime guarantee
  • 22mm thickness
  • Choose from 9 preformed sizes
  • Flow rate up to a massive 41 l/min

Wet room floor construction

To view a typical cross-section of a timber floor installation using a Novellini wet room floor deck in conjunction with waterproof tanking membrane to ensure total security against leaks and dampness.

NOVELLINI DUO DECK wet room shower floor former kit sizes

Novellini DUO Deck 1
Order reference code

DUOKIT 1

Novellini DUO DECK 1 - Linea drain 900 x 900 wet room floor former
Overall Dimensions 900 x 900

  • Price includes linear waste outlet,  trap and stainless grill G1.

  • Grill may be upgraded to G3 type with inset tiling rebate (please see below)

  • Additional traps can be utilised to increase the flow handling capacity of the linear waste. (please see below)

Price:

 £406.24  + VAT

Order



Novellini DUO Deck 2
Order reference code

DUOKIT 2

Novellini DUO DECK 2 - Linea drain 1200 x 900 wet room floor former
Overall Dimensions 1200 x 900

  • Price includes linear waste outlet,  trap and stainless grill G1.

  • Grill may be upgraded to G3 type with inset tiling rebate (please see below)

  • Additional traps can be utilised to increase the flow handling capacity of the linear waste. (please see below)

Price:

 £492.18 + VAT

Order



Novellini DUO Deck 3
Order reference code

DUOKIT 3

Novellini DUO DECK 3 - Linea drain 1200 x 900 wet room floor former
Overall Dimensions 1200 x 900

  • Price includes linear waste outlet,  trap and stainless grill G1.

  • Grill may be upgraded to G3 type with inset tiling rebate (please see below)

  • Additional traps can be utilised to increase the flow handling capacity of the linear waste. (please see below)

Price:

 £492.18 + VAT

Order



Novellini DUO Deck 4
Order reference code

DUOKIT 4

Novellini DUO DECK 4 - Linea drain 1500 x 900 wet room floor former
Overall Dimensions 1500 x 900

  • Price includes linear waste outlet,  trap and stainless grill G1.

  • Grill may be upgraded to G3 type with inset tiling rebate (please see below)

  • Additional traps can be utilised to increase the flow handling capacity of the linear waste. (please see below)
Price: £567.45 + VAT

Order



Novellini DUO Deck 5
Order reference code

DUOKIT 5

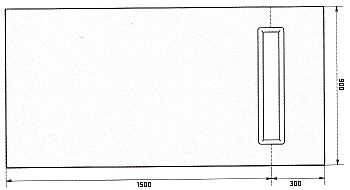

Novellini DUO DECK 5 - Linea drain 1800 x 900 wet room floor former
Overall Dimensions 1800 x 900

  • Price includes linear waste outlet,  trap and stainless grill G1.

  • Grill may be upgraded to G3 type with inset tiling rebate (please see below)

  • Additional traps can be utilised to increase the flow handling capacity of the linear waste. (please see below)
Price: £595.86 + VAT

Order



Novellini DUO Deck 6
Order reference code

DUOKIT 6

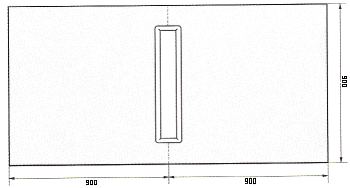

Novellini DUO DECK 6 - Linea drain 1800 x 900 wet room floor former
Overall Dimensions 1800 x 900

  • Price includes linear waste outlet,  trap and stainless grill G1.

  • Grill may be upgraded to G3 type with inset tiling rebate (please see below)

  • Additional traps can be utilised to increase the flow handling capacity of the linear waste. (please see below)
Price: £595.86 + VAT

Order



Novellini DUO Deck 7
Order reference code

DUOKIT 7

Novellini DUO DECK 7 - Linea drain 1000 x 1000 wet room floor former
Overall Dimensions 1000 x 1000

  • Price includes linear waste outlet,  trap and stainless grill G1.

  • Grill may be upgraded to G3 type with inset tiling rebate (please see below)

  • Additional traps can be utilised to increase the flow handling capacity of the linear waste. (please see below)
Price: £492.18 + VAT

Order



Novellini DUO Deck 8
Order reference code

DUOKIT 8

Novellini DUO DECK 8 - Linea drain 1200 x 1000 wet room floor former
Overall Dimensions 1200 x 1000

  • Price includes linear waste outlet,  trap and stainless grill G1.

  • Grill may be upgraded to G3 type with inset tiling rebate (please see below)

  • Additional traps can be utilised to increase the flow handling capacity of the linear waste. (please see below)
Price: £492.18 + VAT

Order



Novellini DUO Deck 9
Order reference code

DUOKIT 9

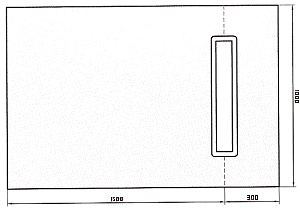

Novellini Duo Dec 9 1500 x 1200 diagram
Overall Dimensions 1500 x 1200

  • Price includes linear waste outlet,  trap and stainless grill G1.

  • Grill may be upgraded to G3 type with inset tiling rebate (please see below)

  • Additional traps can be utilised to increase the flow handling capacity of the linear waste. (please see below)
Price: £567.45 + VAT

Order



Novellini DUO Deck wet room floor waste outlet and grill options

The Duo Deck wet room shower floor former is supplied with a linear waste outlet and trap.

The linear drain has a stainless steel cover running it's length which can be lifted for cleaning purposes. The standard linear drain can handle 25 l/min. It is possible to buy an additional trap that installs below the drain and increases the handling capacity to a massive 41 litres per minute!

The trap has a multi-directional 50mm outlet spigot and the kit is supplied with a 50mm-42mm reducer for connection to UK plastic pipework.

There is an option to change the cover plate to one with a tiling rebate so tile may be inlaid. Please see below.

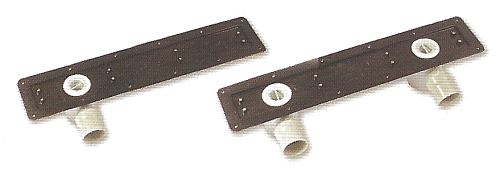

Novellini linear floor drain traps showing single and double horizontal waste outlet traps.
Order reference code G1

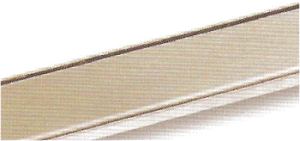

Standard stainless steel linear drain cover for a wet room floor drain

The G1 standard grill is a stainless plate that fits along the length of waste outlet (drain) up to which your wet room shower floor may be tiled.

Unless specified to the contrary this grill will be supplied with your order.
Price: Included in DUO Deck price
Order reference code G3
The G3 grill incorporates a tiling rebate in to which you may inlay a tile to match the surrounding shower floor.

When specified, this grill will be supplied in place of the standard G1 grill. An additional cost applies for this option.

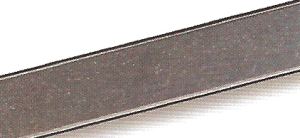

G3 tile rebate drain cover for a wet room linear floor drain

Click here for example
Price: £56.40 inc VAT
Additional waste traps

Horizontal waste outlet trap for a linear floor drain

Vertical waste outlet trap for a linear floor drain
Order reference code

DUOWA90

Additional traps are available (if required) to enhance the flow handling capability of the linear drain. Simple to install (during initial installation) the additional trap locates underneath the linear drain body adding another route by which waste water can be piped to the soil.

The standard single trap Linear waste will handle 25 litres per minute. (One trap is included with Duo Deck drain kit)

With two waste traps the handling capacity increases to 41 litres per minute! Horizontal or vertical options available.
Price: £48.00 inc VAT
Trim detail

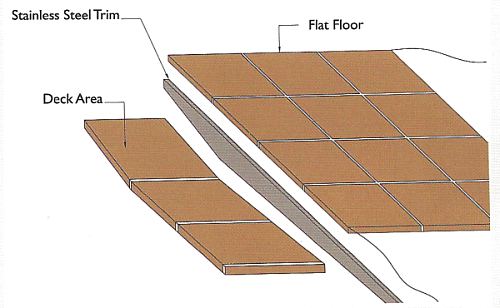

Diagram detailing stainless steel trim section for Novellini wet room shower floor former. Notice how the trim finishes the floor shape discrepancy.

Each deck is supplied with a stainless steel trim to detail the small area alongside where the surrounding floor and the former abut and create a discrepancy.

Ordinarily, if the deck is installed to a corner only one trim should be required (only one exposed side). However, if the position of the deck exposes two height discrepancies (if installed mid wall for example) then a second trim may be required.

Additional trim pieces may be purchased for this purpose. Please enquire.
Tile trim (Code / Length) Price inc VAT
NWFSS1 - 300/600mm 42.00
NWFSS2 - 600/600mm 48.00
NWFSS3 - 300/900mm 48.00
NWFSS4 - 300/1200mm 60.00
NWFSS5 - 300/1500mm 66.00
NWFSS6 - 900/900mm 66.00
NWFSS7 - 300/700mm 48.00




Order
