NEPTUNE Envirotec Shower Pods - Technical information

NEPTUNE 800mm x 800mm square shower pod

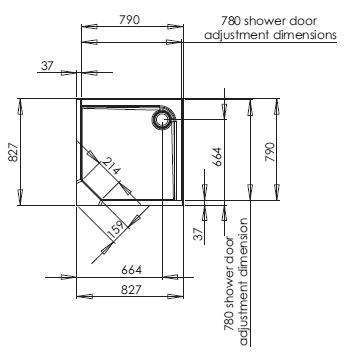

800mm square corner shower pod dimensions

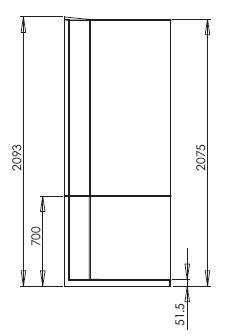

Vertical dimensions for the Envirotec 800 corner shower pod

Vertical dimensions without leg kit (Applies to 800 and 900 square models). Please add 100mm to the total height if the leg riser kit is used.

NEPTUNE 900mm x 900mm square shower pod

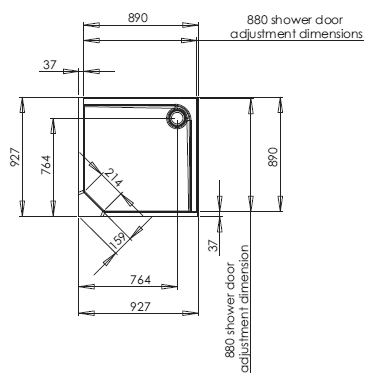

900mm square corner shower pod dimensions



NEPTUNE 800mm Quadrant shower pod

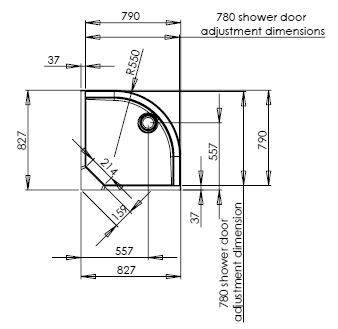

Dimensions of the 800 quadrant shower pod

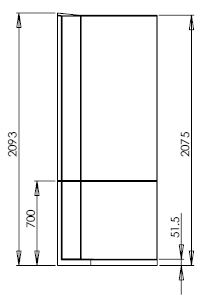

Vertical dimensions of the quadrant shower pod without riser kit

Vertical dimensions without leg kit (Applies to 800 and 900 quadrant models). Please add 100mm to the total height if the leg riser kit is used.

NEPTUNE 800mm Quadrant shower pod

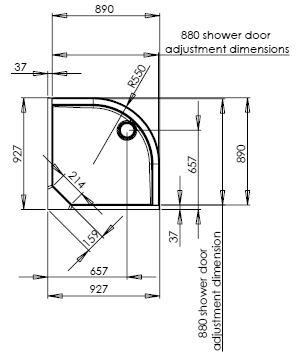

Dimensions of the 900 quadrant shower pod

NEPTUNE 1200 x 800 Rectangular shower pod

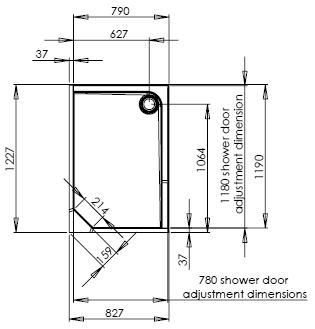

1200 x 800 rectangular shower pod diagram

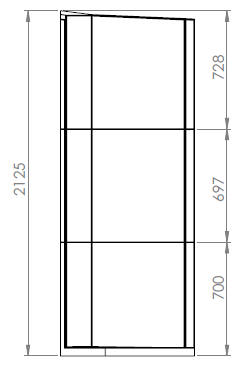

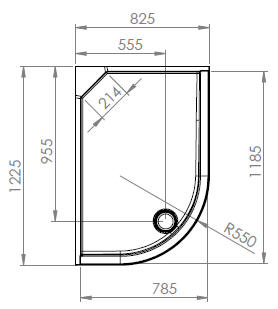

NEPTUNE 1200 x 800 Offset quadrant shower pod
