AFFINITY Walk in bath

A luxury side entry walk in bath with optional air spa

Products > Walk in bath > Tub Style > Compact Walk in Baths > AFFINITY bath

Mantaleda AFFINITY

Walk in bath Compact design for smaller spaces


walk in bath

The AFFINITY walk in bath offers a compact footprint making it suitable for smaller bathrooms.

The effortless side entry gadget free door locking mechanism is simple to operate. The tub style of bath can be filled to a higher level than a conventional bath and its taller profile offers excellent points of support on which the user can lean when entering and exiting. In many cases this negates the need for additional grab rails.

At just 1050mm in length it offers the occupant a good balance between internal space and outward size.

Catering for bathers of different heights, the seat height can be raised from the standard 320mm with the addition of the optional seat extension.

The wide inward opening door ensures great access and a good watertight seal when the bath is filled.

With the addition of the optional spa system you can experience the height of luxury enjoying hydro massage from the 12 jet 3 speed system.

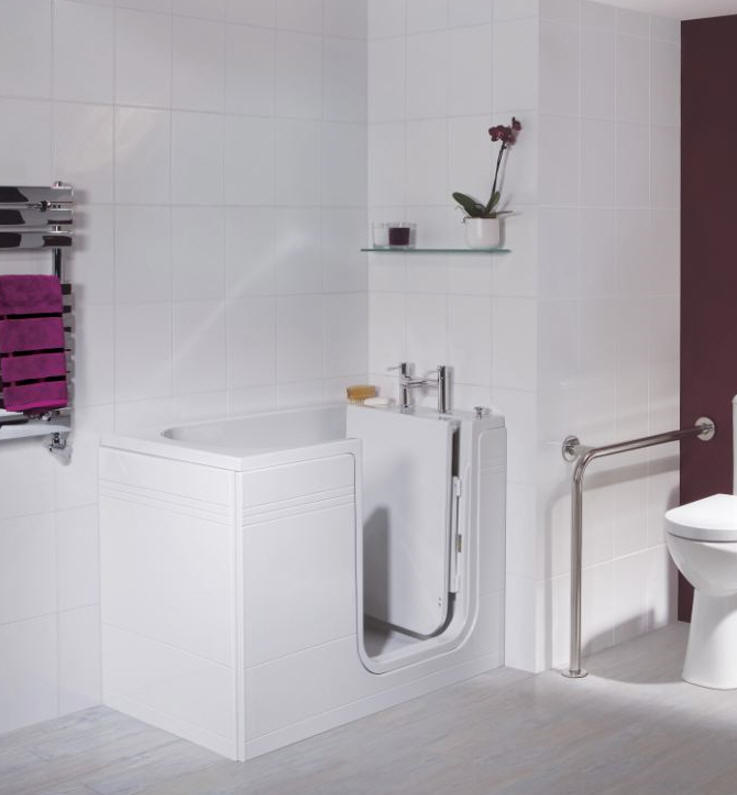

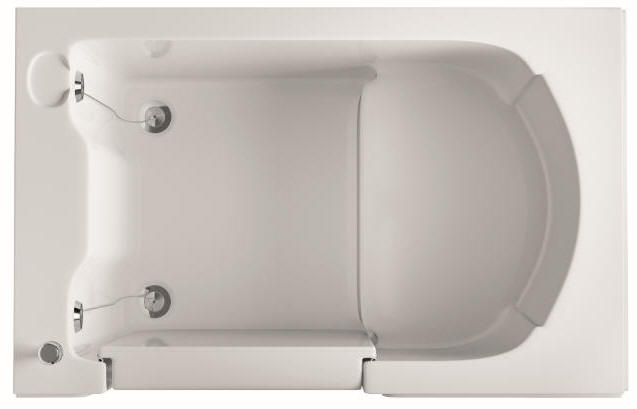

The AFFINITY Walk in bath. A compact walk in bath with wide low lever access door.

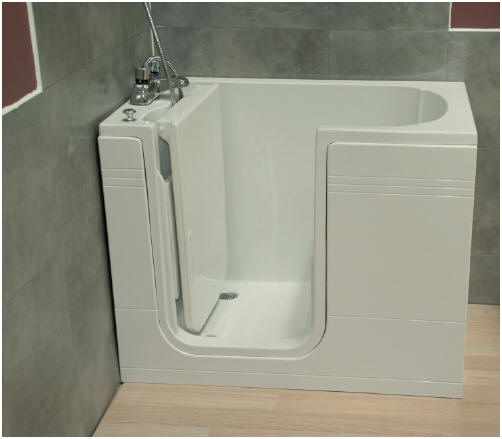

Affinity walk in bath showing the clever cantilever hinge mechanism.

Capacity: 195 litres (unoccupied)


Length 1050mm
Width 665mm
Height 890mm

Features of the

AFFINITY walk in bath:

  • Premium Construction

  • Low access for easy entry

  • Inward opening wide door

  • Easy to operate door mechanism

  • Left and right hand door options

  • 12 jet 3 speed hydro spa option

  • Chromotherapy light option

  • Optional seat height extender

  • Dual waste outlets

  • 1050 L x 665 W x 890 H

Special Offer


1590.00 + VAT


Walk in Bath

RRP 2139.00 + VAT




Door side panel


End panel


12 Jet spa




Waste outlet kit FREE!

Are you eligible for VAT RELIEF? Click here for more information

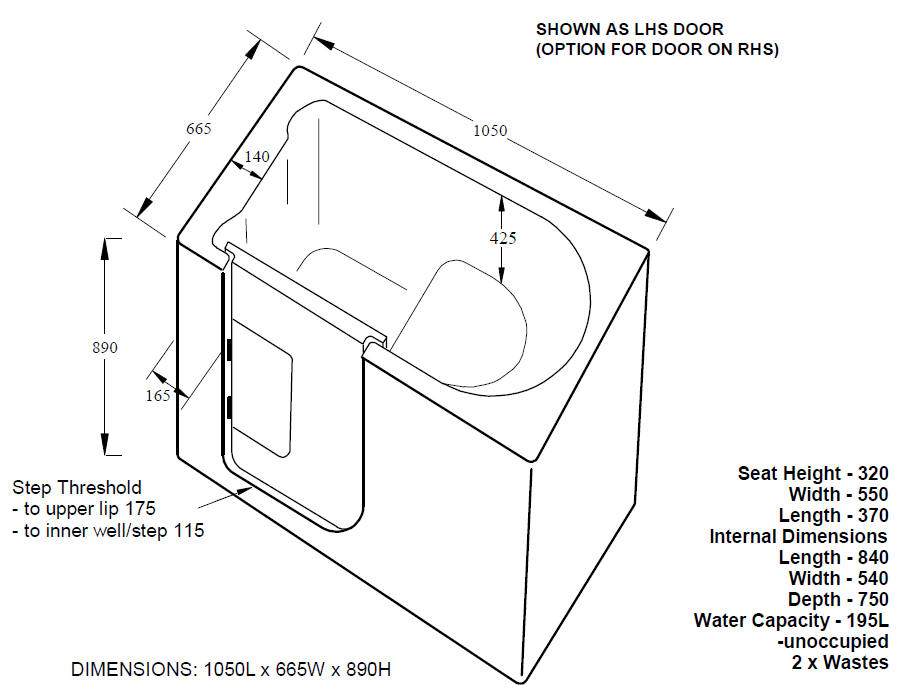

Affinity Walk in bath dimensions (Dia 1)

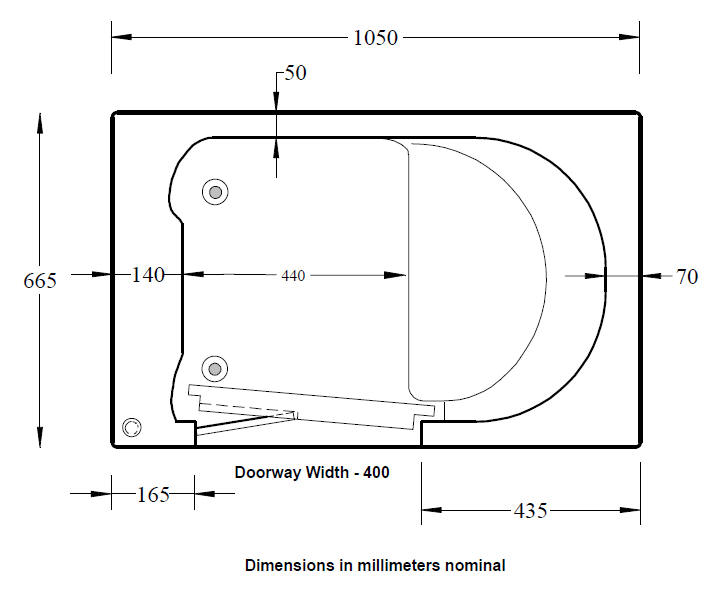

Affinity Walk in bath dimensions (Dia 2)

The wide inward opening door operates with a clever cantilever hinge. This permits the door to 'slide open' in front of the bather, minimising the intrusive arc normally associated with a hinged door.

The door is released by means of an easy to operate button.

  • Elegant design

  •  Option seat height extender

  • A range of optional brassware

  • Step in 170mm

  • Inner threshold 110

  • 320mm seat height

As with all walk in baths we strongly recommend the use of a Thermostatically controlled taps or a Thermostatic Mixing Valve (TMV) on the hot water inlet of this bath to prevent scalding. If you require further information please ask.


Baths shown on this website are pictured in settings which may show various bathroom fixtures, fittings and accessories (brassware and shower equipment for example) for illustrative purposes only and while available for purchase as optional extras they are not included in the price stated for any bath.

Prices do not include installation. Please don't hesitate to enquire for further information



Are you eligible for VAT RELIEF? Click here for more information

AFFINITY walk in bath


If you would like details of this product in hard copy please click here to Print This Page
