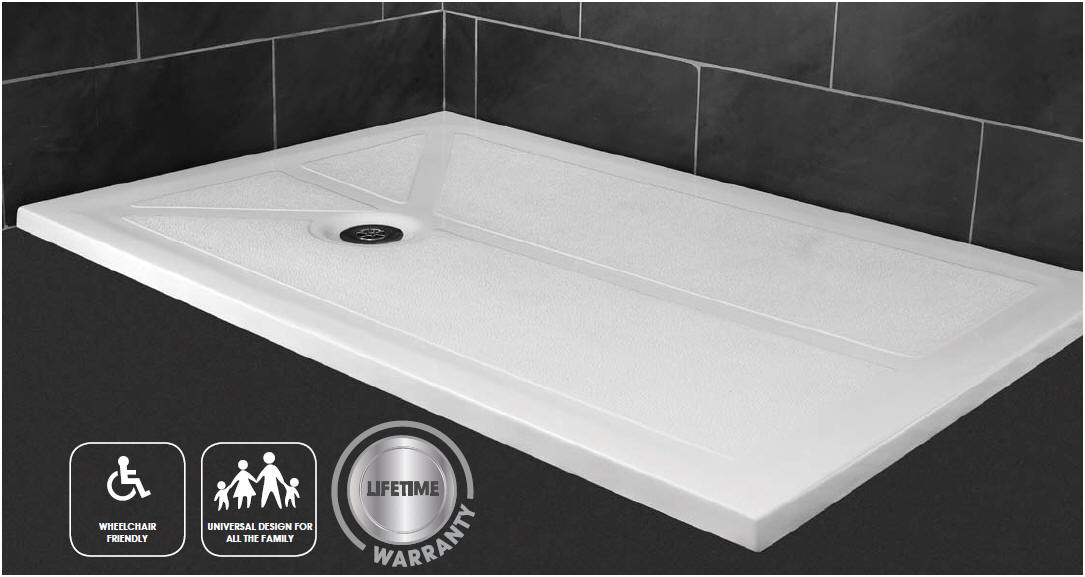

The COMBI
shower tray is a super-low profile
model only 32mm thick. Such a low
profile presents a very low step
height should you wish to lay the
tray on the floor surface.
When surface
mounted an
optional ramped edge can be
added to facilitate wheelchair
access. The COMBI shower tray also lends itself to
being rebated into the floor to
provide level access.
COMBI shower
trays are compatible with timber,
screed or concrete floor
construction.
For the perfect
installation when rebating there are
optional Vinyl and Tiled floor
profiles that can be added to
the outer edges to provide a
waterproof seal between tray and
adjacent floor surface.
The COMBI
shower tray offers true versatility
as it
can be cut to size on site for
a truly snug fit - even in areas
that present
an awkward shape.
The COMBI
shower tray is available with a
choice of
waste outlets and the option of a
Plinth and
Riser Leg kit.
|
 |
 |
|
Surface mounting presents a
low step |
Fully recessed for true
level access |
Technical features of the
COMBI low profile shower
tray
|
-
Patented multi-functional tray – full range of adaptors available.
-
Can be recessed to offer zero step access to the showering area.
-
Can be surface mounted (32mm) for a low level access threshold.
-
Tray surface texture assists in preventing accidental slipping. The wet and dry slip resistance has been independently tested.
|
-
Can
be installed in a corner
or an alcove.
-
Can
be cut to length if
required (cut edges must
be fitted against the
walls).
-
Available in at least 14
different sizes.
-
Lifetime antibacterial
protection
-
Weight capacity 380 kg /
60 stone (Bariatric).
-
Offset waste location to
help avoid joists.
-
Choice of 50mm or 90mm Ø
inlet / 1½” Ø outlet
waste.
|

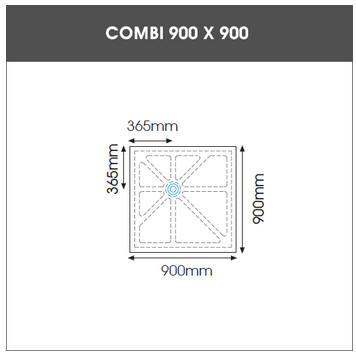

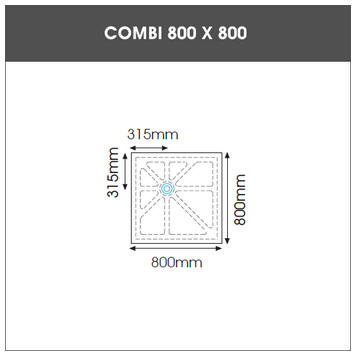

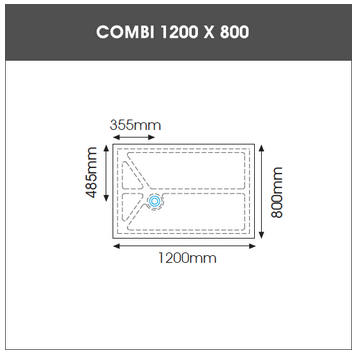

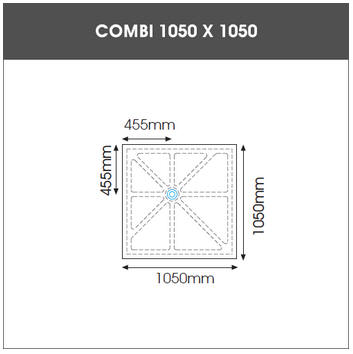

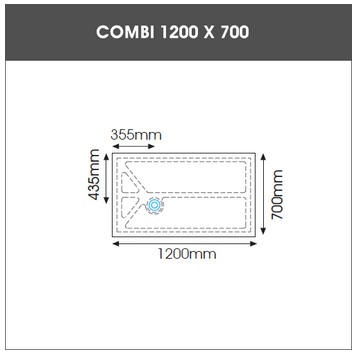

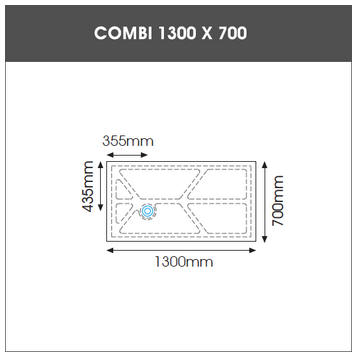

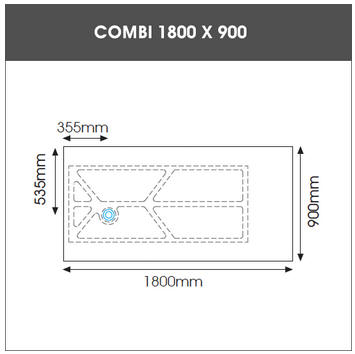

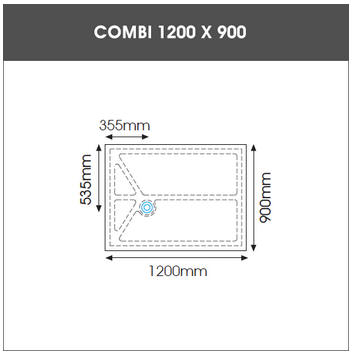

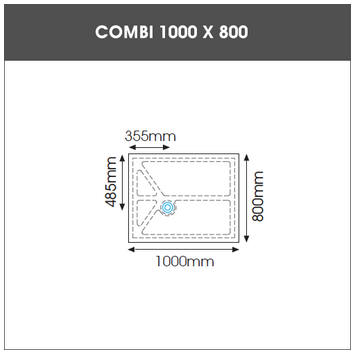

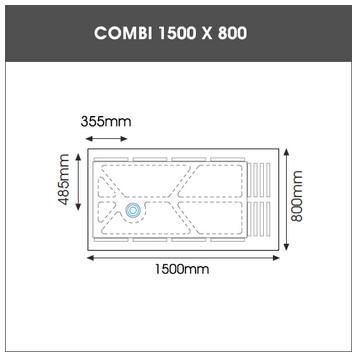

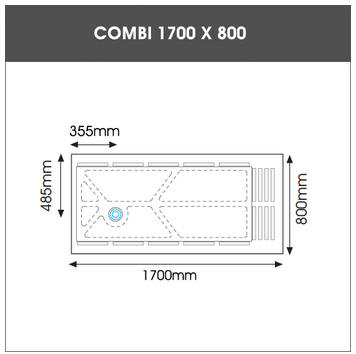

Available in a range of sizes:
Super
low profile COMBI shower trays
|
|
£233.46 + VAT |
£233.46 + VAT |
|
£240.56 + VAT |
£240.56 + VAT |
|
£252.76 + VAT |
£259.26 + VAT |
|
£264.95 + VAT |
£264.95 + VAT |
|

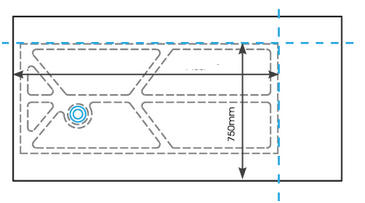

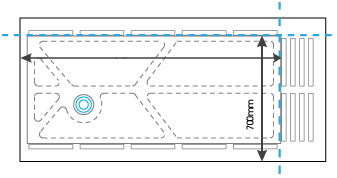

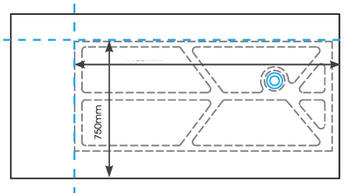

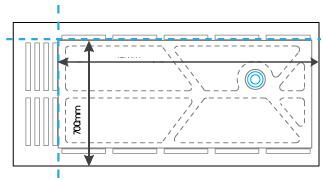

Super
low profile 'flat
bottom' COMBI shower trays
|
|
(Trimmable to 1250 x
700mm)
£295.87 + VAT |
|
|
|
(Trimmable to 1450 x
700mm)
£317.71 |
|
|
|
(Trimmable to 1450 x
750mm)
£340.19 + VAT |
|
|
Prices stated exclude
VAT. Are you eligible
for relief?
|
|
|
|

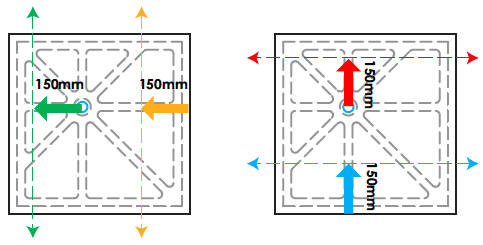

Square trays can be cut
in length or width. |

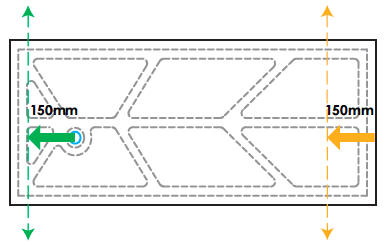

Rectangular trays can be
cut in length only. |
 |
 |
|
Cut edges must be fitted
against walls.
 |
|
|
|
|
 |
 |
|

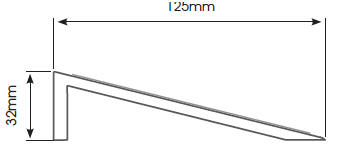

Optional
straight ramp
This ramp is
useful if access
to the shower
tray is required
from one side
only.
The ramp can be
used as a
removable
feature or
permanently
fixed. It has a
very gentle 1 in
4 gradient for
ease of entry
and can be
attached by an
easy overlapping
clip mechanism
allowing it to
be lifted off at
any time.
£74.60 + VAT |
Optional corner
ramp
A corner ramp is
more desirable
when access to
the shower tray
may be necessary
from any
direction. The
ramp can be
installed as a
removable
feature or
permanently
fixed. The
gentle 1 in 4
gradient lends
itself to
wheelchair
access. The ramp
can be attached
by an
easy overlapping
clip mechanism
allowing it to
be lifted off at
any time.
£107.36 + VAT |
|
 |
 |
|
|
|
Optional edging
profiles for a
recessed COMBI
shower tray |
|
 |
 |
|
Optional Edging
to seal vinyl
flooring
When used with a
COMBI shower
tray that is
fully recessed
into the floor
this clever
profile allows
you to lock in
the edge of a
vinyl floor
covering to
provide a neat
watertight seal. |
Optional Edging
to seal tile
flooring
When the COMBI
tray is fully
recessed into
the floor this
profile gives
the tiler a nice
brushed silver
edge to seal
against. |
|
|
|
|
|
If you elect to
use a low
profile shower
tray don't
forget that you
will need to get
the waste water
away - this will
almost always be
below floor
level and
involve using a
trap.
There are of
course times
when the
properties of a
COMBI shower
tray are desired
but the waste
must travel
above floor
level.
In such a
situation a
plinth kit
can be
utilised that
will raise the
COMBI shower
tray on
adjustable legs.
A plinth panel
then covers the
gap hiding legs
and plumbing
from sight.
|
Further
Information |
|
|
|
|
Site conditions
will vary as
will drainage
requirements.
For this reason
when you buy a
COMBI low
profile shower
tray you have
several waste
outlet options.
Unless you
specify
otherwise your
COMBI tray will
be supplied with
a standard 50mm
waste outlet and
trap. For other
options you can
choose from
those shown
below:
(All wastes
have top access
for easy
cleaning) |
|
Standard
50mm
waste
outlet
and trap |
Included
as
standard |
|
 |
 |
|
Max.
flow
rate 24
litres
per
minute.
(19mm
water
seal
trap)
(50mm &
80mm
water
seal
trap
available) |
|
|
|
UPGRADE
90mm
waste
outlet
and trap |
Optional
Extra -
POA |
|
 |
 |
|
Max.
flow
rate 34
litres
per
minute.
(50mm
water
seal
trap) |
|
|
|
Pumped
50mm
waste
outlet |
Optional
Extra -
POA |
|
 |
 |
|
Max.
flow
rate
determined
by pump.
(Untrapped) |
|
|
|
Pumped
90mm
waste
outlet |
Optional
Extra -
POA |
|
 |
 |
|
Max.
flow
rate
determined
by pump.
(Untrapped) |
|
Please don't hesitate to
call and discuss any
aspect of your
requirement.
|
|
