For surface or recessed installation - can be trimmed to size



Products > Wet Rooms and Shower Enclosures > ACCESS Low Profile Shower Trays

ACCESS - Low profile shower trays

for surface or recessed installation

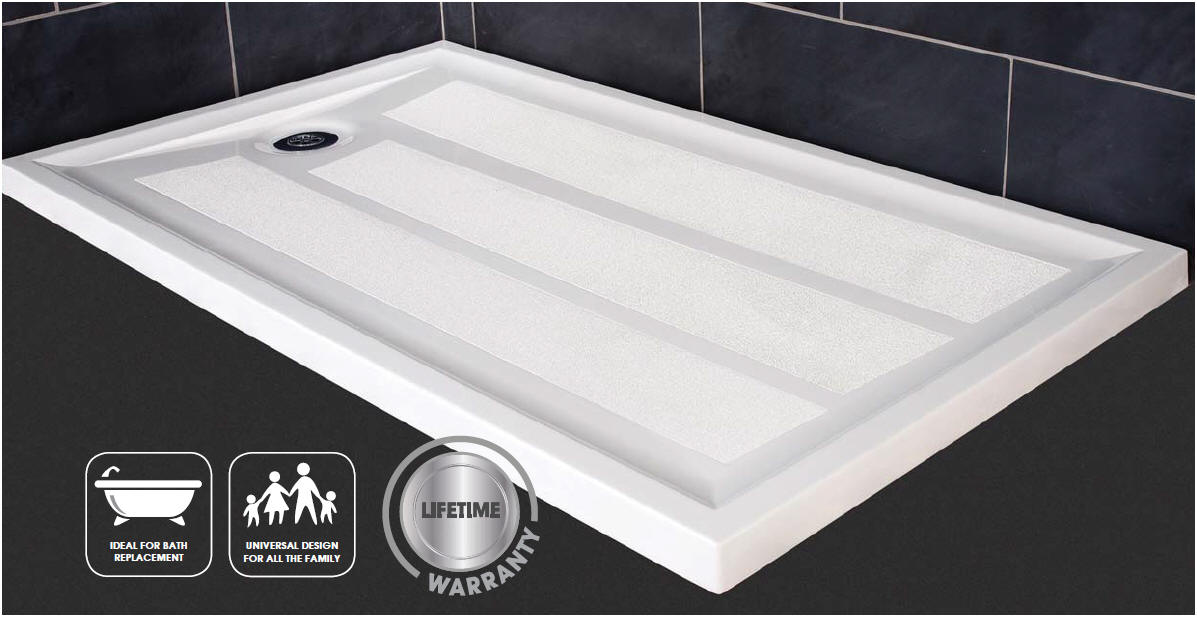

EASA ACCESS low profile shower trays

The Access™ Tray has been designed with all the family in mind and the longer models make a perfect solution for bath replacements.

ACCESS Trays can be recessed to create level access or surface mounted for a low level (40mm) access threshold.

When surface mounted an optional ramped edge can be added to facilitate wheelchair access.

ACCESS shower trays are compatible with timber, screed or concrete floor construction.

The larger ACCESS shower trays offer true versatility as they can be cut to size on site for a truly snug fit - even in areas that present an awkward shape or don't quite conform to 'standard sizes'.

The ACCESS shower tray is available with a choice of waste outlets and the option of a Plinth and Riser Leg kit.

One additional shower tray is available in this range for surface installation and use with a waste pump. Please see the 'ACCESS PUMPED' shower tray.

Surface installation presents a very low step height

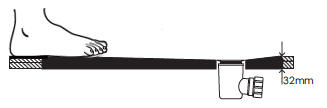

Recessed installation presents level access

Surface mounting presents a low step Fully recessed for true level access



Technical features of the ACCESS low profile shower tray

  • Universal design for users with reduced mobility as well as all the family.

  • Multi-functional tray – range of adaptors available.

  • Can be recessed to offer level access to the showering area.

  • Can be surface mounted  for a low (40mm) step access threshold.

  • Can be installed in a corner or an alcove.

  • Tiling Upstands can be supplied to provide enhanced waterproofing protection.

  • Non-handed.

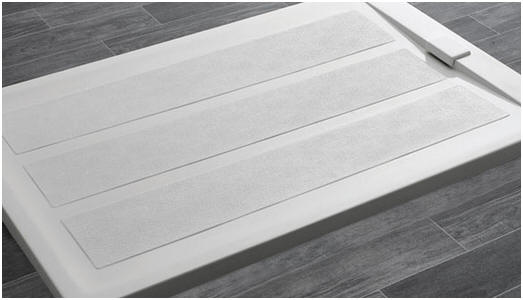

  • Tray surface texture assists in preventing accidental slipping. The wet and dry slip resistance has been independently tested.

  • Available in at least 16 different sizes.

  • Lifetime antibacterial protection.

  • Weight capacity 275 kg / 43 stone / Cut-to-length trays 380 kg / 60 stone.

  • Choice of 50mm or 90mm Ø inlet / 1½” Ø outlet waste.





Available in a range of sizes:

Low profile ACCESS shower trays

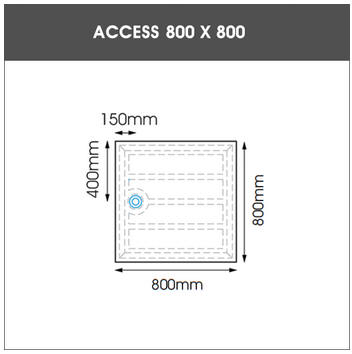

800 x 800 EASA ACCESS low profile shower tray

£291.19 + VAT

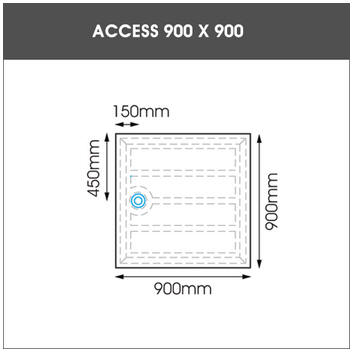

900 x 900 EASA ACCESS low profile shower tray

£299.23 + VAT

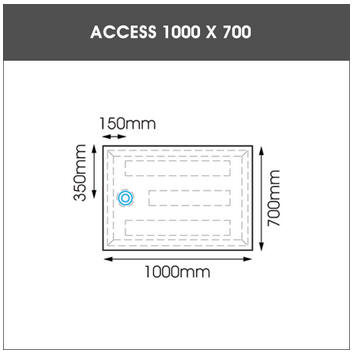

1000 x 700 EASA ACCESS low profile shower tray

£299.23 + VAT

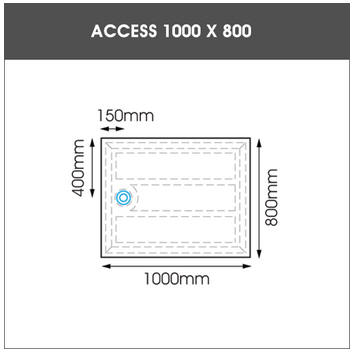

1000 x 800 EASA ACCESS low profile shower tray

£305.15 + VAT

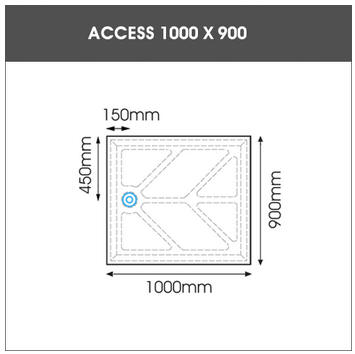

1000 x 900 EASA ACCESS low profile shower tray

£309.33 + VAT

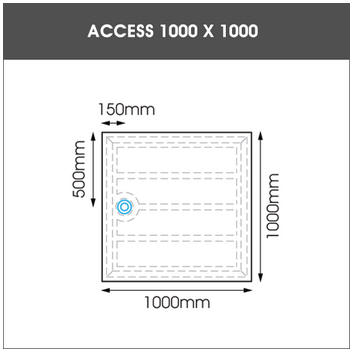

1000 x 1000 EASA ACCESS low profile shower tray

£315.50 + VAT

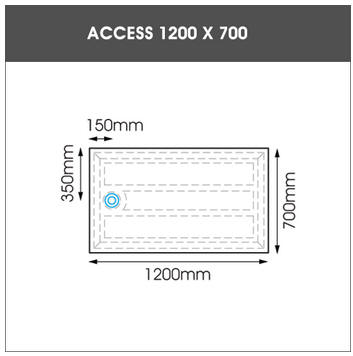

1200 x 700 EASA ACCESS low profile shower tray

£315.50 + VAT

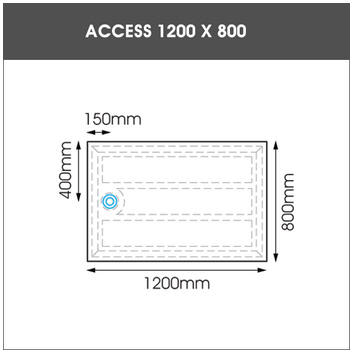

1200 x 800 EASA ACCESS low profile shower tray

£320.73 + VAT

--------

 'Pumped Tray Option' also available

See below

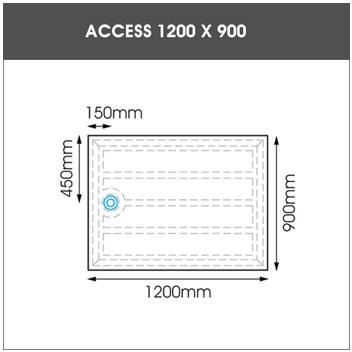

1200 x 900 EASA ACCESS low profile shower tray

£325.10 + VAT

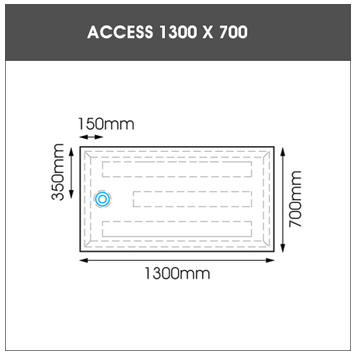

1300 x 700 EASA ACCESS low profile shower tray

This tray size can be achieved using the

ACCESS 1500 x 800 trimmable. See below.

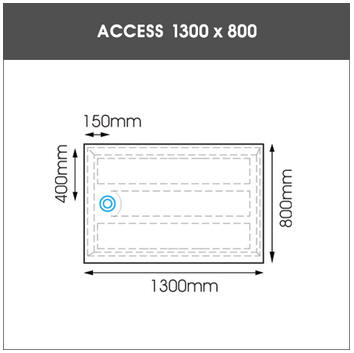

1300 x 800 EASA ACCESS low profile shower tray

£330.53 + VAT

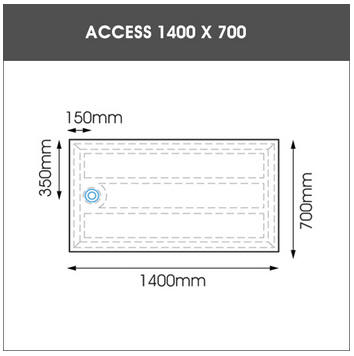

1400 x 700 EASA ACCESS low profile shower tray

This tray size can be achieved using the

ACCESS 1500 x 800 trimmable. See below.

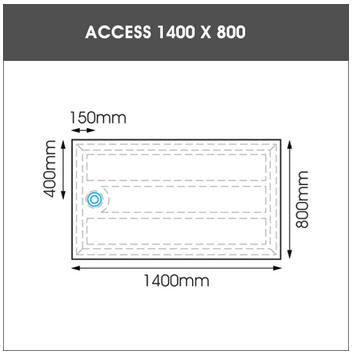

1400 x 800 EASA ACCESS low profile shower tray

£339.95 + VAT

Trimmable - See section below

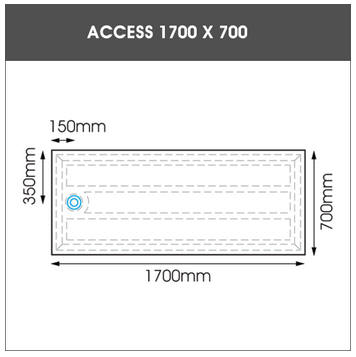

1700 x 700 EASA ACCESS low profile shower tray

£349.99 + VAT

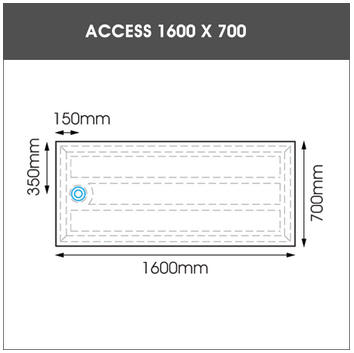

1600 x 700 EASA ACCESS low profile shower tray

This tray size can be achieved using the

ACCESS 1700 x 800 trimmable. See below.

Trimmable - See below

Trimmable - See section below

Trimmable - See below

Prices stated exclude VAT. Are you eligible for relief?



Are you eligible for VAT RELIEF? Click here for more information

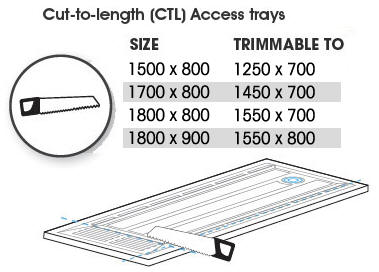

ACCESS low profile shower trays that can be cut to size

Cut edges must be fitted against walls.

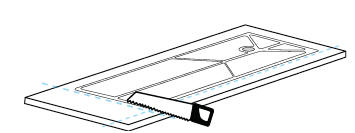

Cutting a shower tray to size

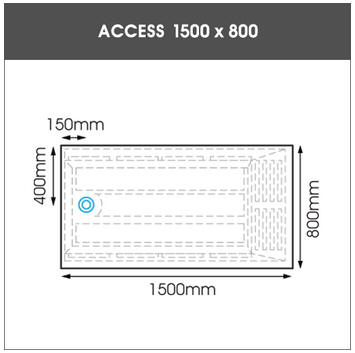

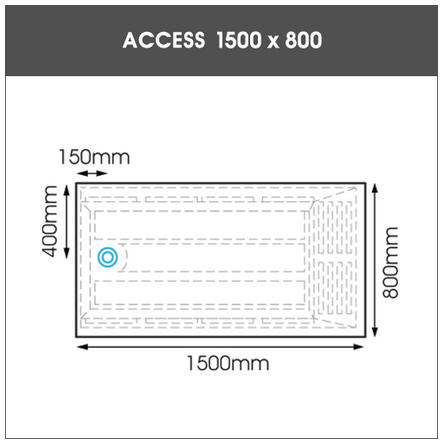

1500 x 800 EASA ACCESS trimmable low profile shower tray

£375.80 + VAT

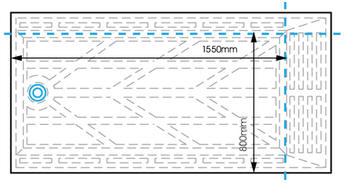

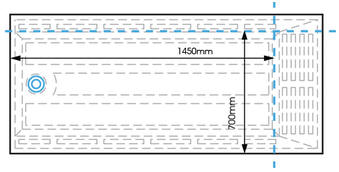

1500 x 800 EASA ACCESS trimmable low profile shower tray dia 1

1500 x 800 EASA ACCESS trimmable low profile shower tray dia 2

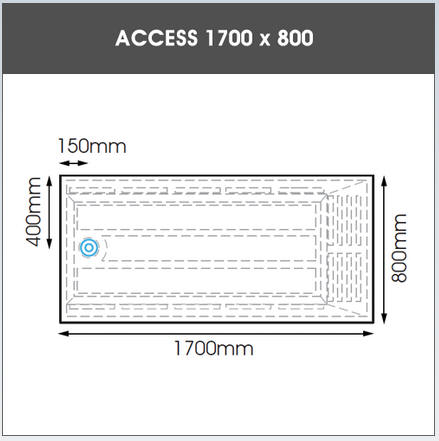

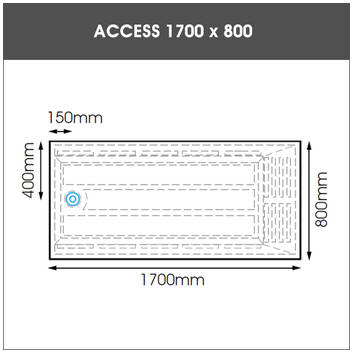

1700 x 800 EASA ACCESS trimmable low profile shower tray

£429.04 + VAT

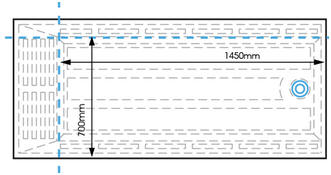

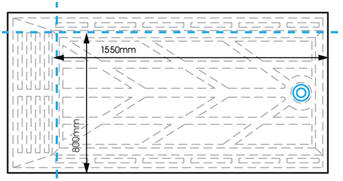

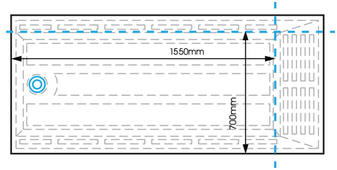

1700 x 800 EASA ACCESS trimmable low profile shower tray dia 1

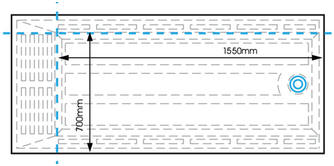

1700 x 800 EASA ACCESS trimmable low profile shower tray dia 2

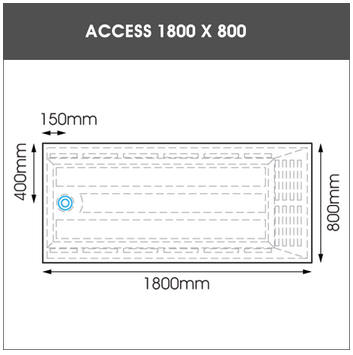

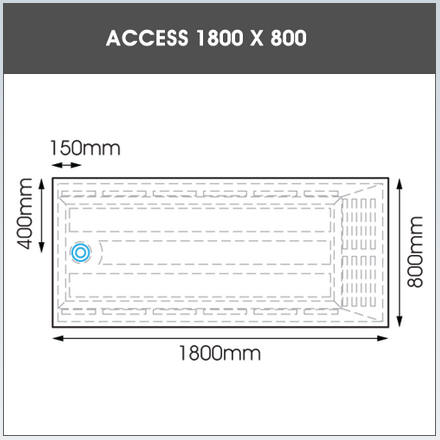

1800 x 800 EASA ACCESS trimmable low profile shower tray

£455.65 + VAT

1800 x 800 EASA ACCESS trimmable low profile shower tray dia 1

1800 x 800 EASA ACCESS trimmable low profile shower tray dia 2

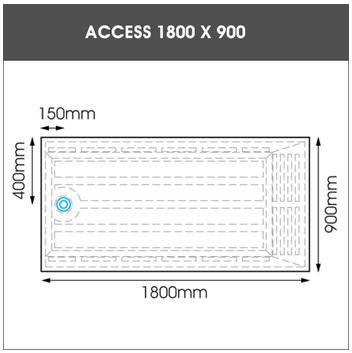

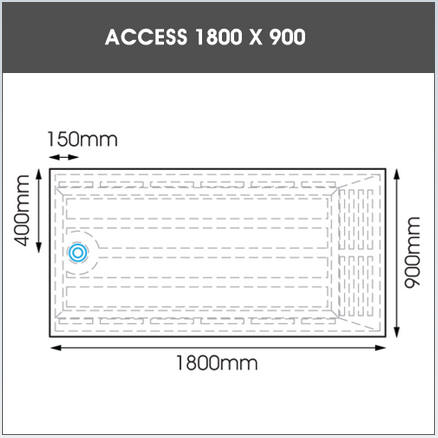

1800 x 900 EASA ACCESS trimmable low profile shower tray

£485.95 + VAT

1800 x 900 EASA ACCESS trimmable low profile shower tray dia 1

1800 x 900 EASA ACCESS trimmable low profile shower tray dia 2

ACCESS Low profile shower tray with pumped waste outlet

PLEASE NOTE

This particular tray is designed for surface installation only.



1200 x 800 EASA ACCESS low profile shower tray with pumped waste outlet

£375.95 + VAT

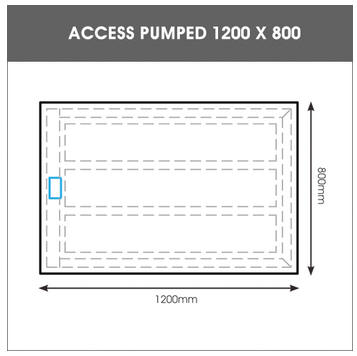

1200 x 800 EASA ACCESS low profile shower tray with pumped waste outlet diagram



N.B. The 'ACCESS PUMPED' shower tray cannot be recessed into the floor

If you require a recessed tray with pumped waste please choose a tray that can be recessed and opt for the waste outlet with a pump spigot.


Optional ramped edging profile for surface mounted shower tray

EASA ACCESS low level shower tray - surface mounted with a single ramped edge

EASA ACCESS low level shower tray - surface mounted with a full corner ramped edge

Optional straight ramp

This ramp is useful if access to the shower tray is required from one side only.

The ramp can be used as a removable feature or permanently fixed. It has a very gentle 1 in 4 gradient for ease of entry and can be attached by an easy overlapping clip mechanism allowing it to be lifted off at any time.

£98.60 + VAT

Optional corner ramp

A corner ramp is more desirable when access to the shower tray may be necessary from any direction. The ramp can be installed as a removable feature or permanently fixed. The gentle 1 in 4 gradient lends itself to wheelchair access. The ramp can be attached by an easy overlapping clip mechanism allowing it to be lifted off at any time.

£139.36 + VAT

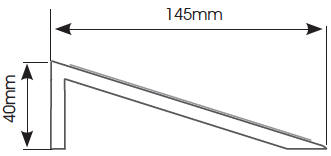

Ramp diagram for EASA ACCESS shower tray 1

Ramp diagram for EASA ACCESS shower tray 2


PLINTH & RISER LEG KIT

If you elect to use a low profile shower tray don't forget that you will need to get the waste water away - this will almost always be below floor level and involve using a trap.

There are of course times when the properties of an ACCESS shower tray are desired but the waste must travel above floor level.

In such a situation a plinth kit can be utilised that will raise the ACCESS shower tray on adjustable legs. A plinth panel then covers the gap hiding legs and plumbing from sight.
























Further Information

WASTE OUTLET SPECIFICATIONS:

Site conditions will vary as will drainage requirements. For this reason when you buy a ACCESS low profile shower tray you have several waste outlet options.

Unless you specify otherwise your ACCESS tray will be supplied with a standard 50mm waste outlet and trap. For other options you can choose from those shown below:

(All wastes have top access for easy cleaning)

Standard 50mm waste outlet and trap

Included as standard

Standard 50mm waste outlet

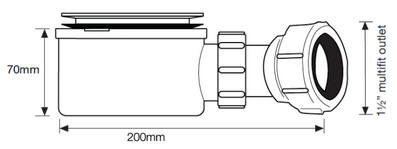

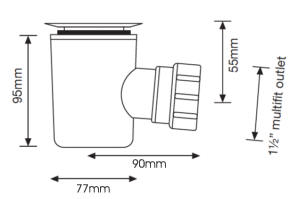

Standard 50mm waste outlet dimensions

Max. flow rate 24 litres per minute. (19mm water seal trap) (50mm & 80mm water seal trap available)

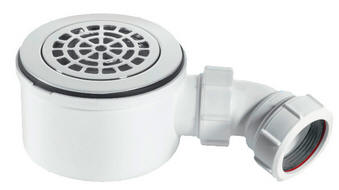

UPGRADE 90mm waste outlet and trap

Optional Extra - POA

90mm waste outlet upgrade

90mm waste outlet upgrade dimensions

Max. flow rate 34 litres per minute. (50mm water seal trap)

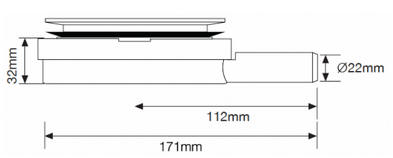

Pumped 50mm waste outlet

Optional Extra - POA

50mm pumped waste outlet (untrapped)

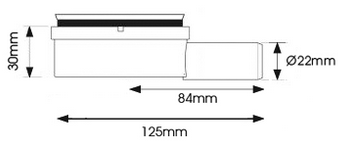

50mm pumped waste outlet (untrapped) dimensions

Max. flow rate determined by pump. (Untrapped)


Pumped 90mm waste outlet

Optional Extra - POA

90mm pumped waste outlet (untrapped)

50mm pumped waste outlet (untrapped) dimensions

Max. flow rate determined by pump. (Untrapped)



Please don't hesitate to call and discuss any aspect of your requirement.
