Slimline 35 low and level entry shower trays by Impey

Almost level access corner shower enclosure with half height shower doors. Excellent for wheelchair access.

The Slimline 35 ultra low shower tray is wheelchair friendly

One of the lowest profile shower trays available measuring only 35mm high.

The Slimline 35 shower tray is highly versatile too. Capitalising on the benefit of a square edge the tray can be recessed into the floor for level access, or fitted with a shallow ramp around the exposed perimeter to facilitate wheelchair entry.

The attractive slip-resistant shower tray is constructed from GRP making it extremely robust - able to support up to 250kg (40 stone). This load bearing capability is particularly useful if the tray needs to carry the additional weight of a carer should assistance be required.

A clever service skirting duct is available within which pipe work can be unobtrusively concealed, making the installation of hidden services easier - minimising the need to chase out walls or floors.

Slimline 35 trays are supplied with a 90mm 'top clean' waste outlet trap (Code: IMOR/H) with horizontal outlet, although alternatives are available.

If running a waste pipe under floor is difficult or impossible you might consider using the Mendip shower tray. The Mendip low level tray incorporates an 'above ground' waste outlet.

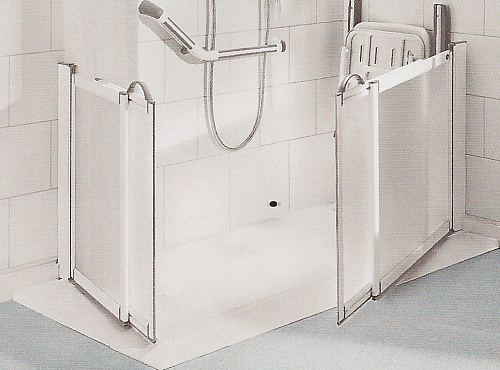

Slimline 35 low profile shower trays may be used in conjunction with the Snowdon and Impress shower cubicles to create a leak free shower enclosure with half-height shower doors and easy entry for wheelchairs or users with limited mobility.



Are you eligible for VAT RELIEF? Click here for more information

Order

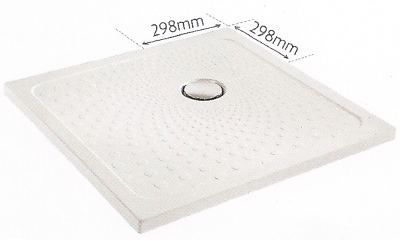

Slimline 35 shower tray - 800 x 800

Order code



SL358080

Slimline 35 shower tray 800 x 800

Price: inc VAT

Dimensions

281.36

800mm X 800mm

Price includes waste

Depth

35mm




Order

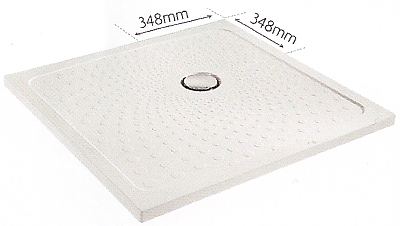

Slimline 35 shower tray - 900 x 900

Order code



SL359090

Slimline 35 shower tray 900 x 900

Price: inc VAT

Dimensions

291.06

900mm X 900mm

Price includes waste

Depth

35mm




Order

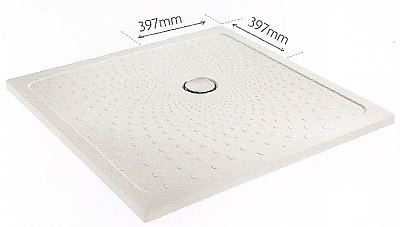

Slimline 35 shower tray - 1000 x 1000

Order code



SL35100100

Slimline 35 shower tray 1000 x 1000

Price: inc VAT

Dimensions

310.46

1000 X 1000mm

Price includes waste

Depth

35mm




Order

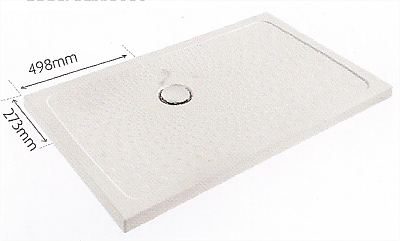

Slimline 35 shower tray - 1200 x 750

Order code



SL3512075

Slimline 35 shower tray 1200 x 750

Price: inc VAT

Dimensions

339.57

1200 X 750mm

Price includes waste

Depth

35mm




Order

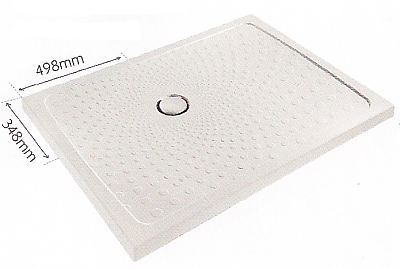

Slimline 35 shower tray - 1200 x 900

Order code



SL3512090

Slimline 35 shower tray 1200 x 900

Price: inc VAT

Dimensions

354.12

1200 X 900mm

Price includes waste

Depth

35mm




Order

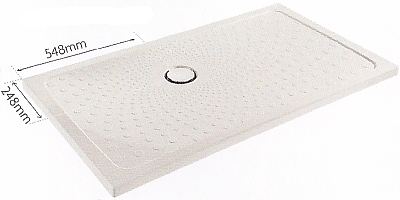

Slimline 35 shower tray - 1300 x 700

Order code



SL3513070

Slimline 35 shower tray 1300 x 750

Price: inc VAT

Dimensions

349.27

1300 X 700mm

Price includes waste

Depth

35mm




Order

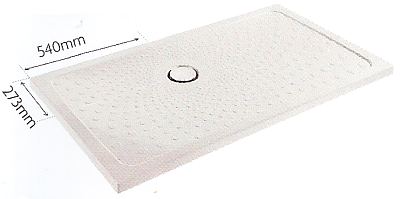

Slimline 35 shower tray - 1300 x 750

Order code



SL3513075

Price: inc VAT

Dimensions

349.27

1300 X 750mm

Price includes waste

Depth

35mm




Order

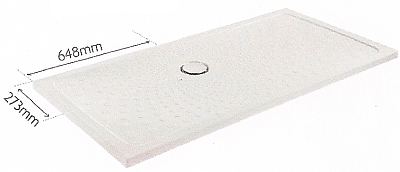

Slimline 35 shower tray - 1500 x 750

Order code



SL3515075

Slimline 35 shower tray 1500 x 750

Price: inc VAT

Dimensions

368.68

1500 X 750mm

Price includes waste

Depth

35mm




Order

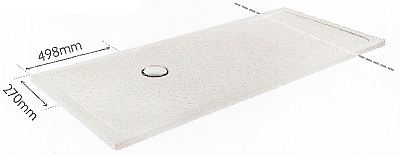

Slimline 35 shower tray - 1700 x 750

Order code



SL3517075

Slimline 35 shower tray 1700 x 750 with a trimmable end

Price: inc VAT

Dimensions

383.23

1700 X 750mm

Price includes waste

Depth

35mm





The 1700 x 750 Slimline 35 shower tray can be cut to length. End cap supplied with tray.

End cap can be purchase separately (30.90)



Order

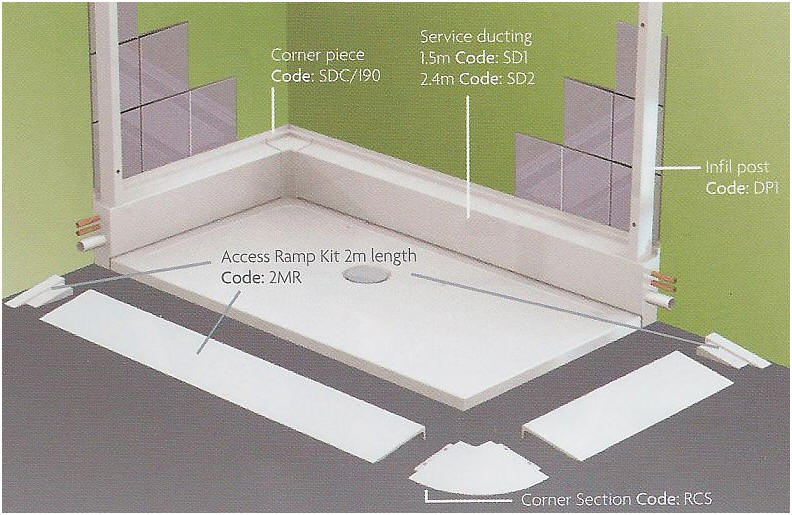

Slimline 35 Service Duct and Ramp Kit

Item

Order code

Price inc VAT

Click image to enlarge

Access ramp kit

2MR

101.52

Slimline 35 shower tray service ducting and ramp kit

Ramp corner

RC5

37.03
1.5m Service duct

SD1

76.31
2.4m Service duct

SD2

105.29

Service duct corner

SDC/190

17.29
Infil post

DP1

44.15
