Riser kits and plinth panels to suit EASA COMBI and ACCESS shower trays



Products > Wet Rooms and Shower Enclosures > COMBI & ACCESS shower tray plinth kits

Plinth and riser leg kits for the COMBI & ACCESS low level shower trays

There can be circumstances when the properties of a low profile tray (i.e. lowest possible step-in height) are desirable but plumbing demands that the waste must run above floor level. In such a scenario raising the tray becomes a necessity.

For reasons such as these we can supply a riser leg and plinth panel kit. Specifications are dependant on the type and size of tray and whether your installation is to an corner or alcove.

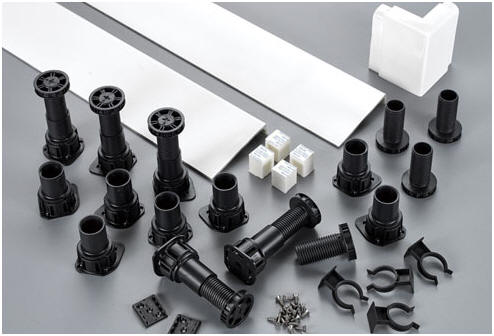

EASA COMBI and ACCESS shower tray plinth and riser leg kit

The Plinth Kit consists of:

  • Adjustable Support Legs (quantity depends on tray size) (Image 1)

  • Plinth panels (depending on the size and configuration of the tray)

  • 8 x Side Panel Mounting Brackets (Image 2)

  • 8 x Side Panel Magnetic Strip Sets (Image 2)

  • Mounting screws

  • An ideal solution when pipework cannot be run below floor level

  • Fast and low cost alternative to constructing a plinth

  • Excellent for levelling the tray on an uneven floor

  • Underside of tray easily accessed via removable panels

  • Corner or alcove installation

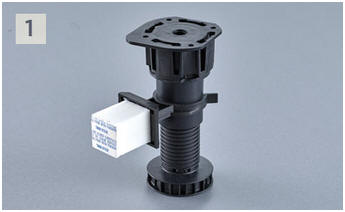

EASA COMBI and ACCESS shower tray riser leg

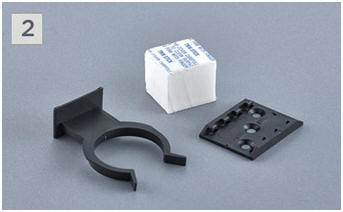

EASA COMBI and ACCESS shower tray bracket set

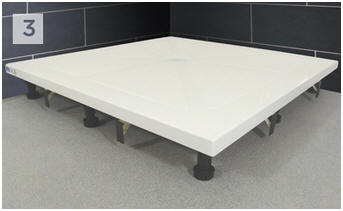

EASA COMBI and ACCESS shower tray with riser legs

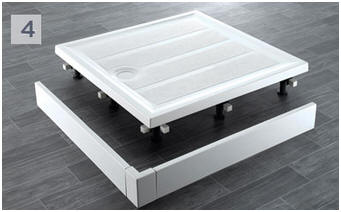

EASA COMBI and ACCESS shower tray plinth panel

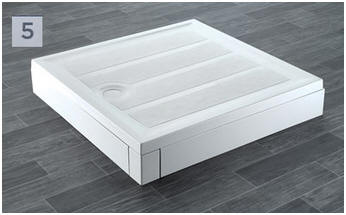

EASA COMBI and ACCESS shower tray fully assembled with plinth panel and riser kit

The overall height of the plinth can be reduced by trimming the bottom of the side panels along their entire length and adjusting the feet to be lower. However, the amount of this reduction will be limited by the height of the waste that is used.



Leg configuration for tray size

Tray Size (mm)

Number of Legs



Tray Size (mm)

Number of Legs

800 x 800

9



1300 x 700

12

900 x 900

9



1300 x 800

12

1000 x 700

9



1400 x 700

12

1000 x 800

9



1400 x 800

12

1000 x 900

9



1500 x 800

12

1000 x 1000

9



1600 x 700

12

1050 x 1050

9



1700 x 700

15

1200 x 700

12



1700 x 800

15

1200 x 800

12



1800 x 800

15

1200 x 900

12








Plinth kits can be supplied to accommodate 3 different height ranges. When you have decided which height range best suits your installation requirements move to the table at the bottom of the page to determine the order code. When ordering, simply state the tray size and which plinth kit you wish to purchase, you will be supplied with the requisite number of legs to suite the size of tray.

Description

Dimensions



Plinth Kit 1

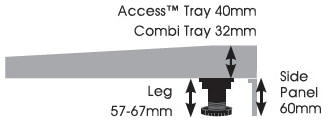

COMBI and ACCESS shower tray plinth kit 1


Plinth Kit 2

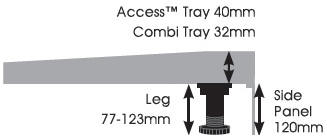

COMBI and ACCESS shower tray plinth kit 2


Plinth Kit 3

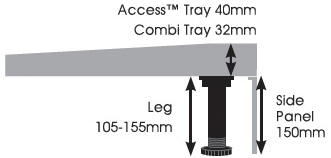

COMBI and ACCESS shower tray plinth kit 3


Plinth Kit to suit Plinth Kit Description Order Code excl VAT
Corner Plinth Kit 1 EFPK000003 102.46
Alcove Plinth Kit 1 EFPK000003A 87.55
Corner Plinth Kit 2 EFPK000004 108.86
Alcove Plinth Kit 2 EFPK000004A 96.06
Corner Plinth Kit 3 EFPK000005 98.73
Alcove Plinth Kit 3 EFPK000005A 83.83

Prices stated exclude VAT. Are you eligible for relief?
