Products > Shower Enclosures > Shower pods > NEPTUNE Envirotec Shower Pods > Alcove shower pod

NEPTUNE Envirotec Alcove shower pods



800 x 800mm 900 x 900mm
1000 x 800mm 1200 x 800mm

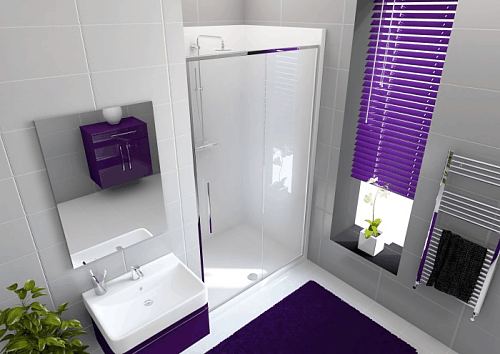

Envirotec 1200 Alcove shower pod with sliding door

NEPTUNE Envirotec alcove shower pods

Shower pods have made leaks a thing of the past. The usual places that water escapes from in a traditional shower enclosure have been designed out, so you can enjoy peace of mind.

The GRP technology used to construct NEPTUNE shower pods is more closely  associated with boat building. The only difference being the pod keeps water in whereas the boat keeps it out!

NEPTUNE alcove shower pods have been designed for easy handling and with a mind for access. The two smaller models are constructed from two sections, the larger 1200 unit from three. All should pass happily through a normal household door.

The integrity of the structure is achieved by extending the lower wall section from the tray to a height that water simply cannot reach. This exaggerated form of 'upstand' does away with the joint traditionally formed between the tray and wall tiles - the place that leaks normally occur. By removing this weakness there's simply nowhere for water to escape.

NEPTUNE shower pods are supplied in sections for ease of access

Envirotec take nothing for granted. You decide what sort of shower equipment to install. You can also decide whether you want to avail yourself of the shower doors offered, or fit an alternative favourite brand.



Drawing showing two sections (upper and lower) of the 800 and 900 alcove shower pods Drawing showing three sections (upper, middle and lower) of the 800 and 1200 alcove shower pod

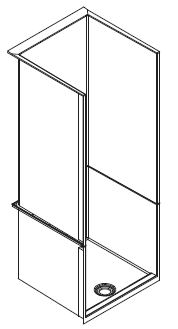

2 Part Construction

800 x 800mm &

900 x 900mm

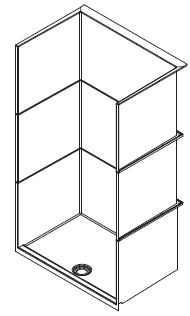

3 Part Construction

1000 x 800mm &

1200 x 800mm

NEPTUNE pods are delivered 'undrilled'. This is to say, you drill holes and screws only where they are needed.

NEPTUNE Alcove shower pods are available in three sizes -

Plumbing your NEPTUNE shower pod

Plumbing the NEPTUNE shower pod is easy. The shower pod is designed to accommodate the mounting of shower equipment - mixer valve, electric or all-in-one power shower shower. Recessed shower equipment may require you to excavate the wall behind the pod to make space. Supplies can be run in the void between the pod and the building wall.

You have a choice when it comes to running the waste. The NEPTUNE pod is supplied with a 90mm 'top clean' outlet and trap. If the pod is sat directly on the floor (on the adjustable feet) the waste can be run in or under the floor. Should you need to raise the pod in order to run the waste above floor level then a riser kit can be ordered as an optional extra. The riser kit contains legs that raise the pod by 100mm and a plinth panel to neatly cover the void.

Diagram showing critical measurements of the 800mm alcove shower pod

Diagram showing critical measurements of the 900mm alcove shower pod

Diagram showing critical measurements of the 1200mm alcove shower pod

The drawings above provide all the critical dimensions you might need to know for the 800 x 800 alcove pod (left), the 900 x 900 pod (centre) and above right the 1200 model. Please note the actual 'footprint' size of each may differ slightly to the designated size.

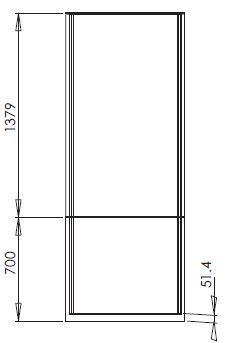

Vertical dimensions for the 800mm and 900mm alcove shower pods



Vertical dimensions 800 and 900 models

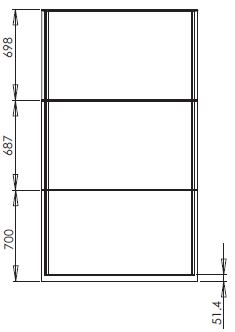

Vertical dimensions for the 1200mm alcove shower pod

Vertical dimensions 1200 model

Please note: The addition of the riser leg kit can raise the unit by up to 100mm from the floor. Please add this to the overall measurement if used.

Choose from the following door options to fit both the 800, 900 and 1200 alcove shower pods:

Pivot shower door

Bi-fold shower door

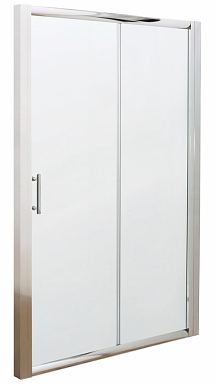

1200 sliding shower door

Pivot door Bi-fold door

1200 sliding door

NEPTUNE Alcove Shower Pod Price list

Select your pod & Easy Plumb Riser Kit (if required) then add the doors and shower equipment of your choice.

Please note: The addition of the riser leg kit can raise the unit by up to 100mm from the floor. Please add this to the overall measurement if used.



AVAILABILITY ISSUES WITH THIS PRODUCT

Please call for further information




  Format Shape Size (mm) Finish Colour Price £ inc VAT

  2 Part Alcove 800 Classic White

  2 Part Alcove 900 Classic White

  3 Part Alcove 1000 Classic White

  3 Part Alcove 1200 Classic White

  Easy Plumb Leg and Plinth Kit   White Only


Order





Envirotec Alcove Shower Doors with 6mm glass

 £ inc VAT
AL808 - 800mm hinge door 6mm x 1850mm
AL808 -800mm bifold door 6mm x 1850mm
AL909 - 900mm hinge door 6mm x 1850mm with Comp. Bars
AL909 - 900mm bifold door 6mm x 1850mm with Comp. Bars
AL108 - 1000mm  6mm x 1850mm Glass sliding panel
AL128 - 1100mm sliding door 6mm x 1850mm with Comp. Bars





Envirotec Alcove Shower Doors with 8mm glass

 £ inc VAT
AL808 - 800mm hinge door 8mm x 2000mm
AL808 - 800mm bifold door 8mm x 2000mm
AL909 - 900mm hinge door 8mm x 2000mm with Comp. Bars
AL909 - 900mm bifold door 8mm x 2000mm with Comp. Bars
AL108 - 1000mm  8mm x 1900mm Glass sliding panel
AL128 - 1100mm sliding door 8mm x 2000mm with Comp. Bars





The discounted Door and panel prices shown are when purchased

with a pod.

If bought separately a higher price may apply.



Shower Equipment

£ inc VAT

1

2

1. TMV2 Bar type mixer valve with hose, handset and riser kit

Chrome



2. TMV2 Bar type mixer valve with hose, handset and riser kit + diverter and rain head

Chrome



Your choice of shower equipment is not limited to the two shower valve

kits offered above. They do however represent great value when

purchased as part of a package.
