Coram leak free 850 Quadrant shower pod

Elegant design with leak-free guarantee

DISCONTINUED PRODUCT

850 corner one piece leak free quadrant shower

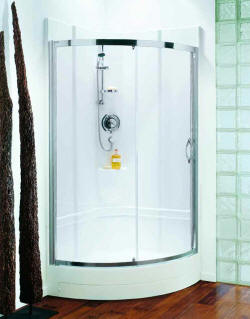

The Coram 850 Quad Shower Pod is a sleek curved corner unit available with a polished silver sliding door, chrome door. The shower pod comes with a high performance thermostatic bar shower as standard with an option to upgrade to a sequential shower (see below).

Coram 850 quadrant leak free shower pod

890 x 890mm quadrant shower pod
Now available 2275mm high or 2130mm high
25 year guarantee (Details)
Polished Silver sliding door
Thermostatic 'bar type' shower equipment included. This can be upgraded to a recessed sequential valve.
Moulded bottle shelf
Easy installation
British designed & built
Rigid base with Waterguard protection and access panel for easy maintenance
Premier Pods feature luxury door frames and finishes
Pods feature Optima door frames and finishes
Fitting information

Coram Shower pods - SPECIAL OFFER PRICES
Pod size	Frame colour	Our Price
850 Quad Premier Pod	Polished Silver

Sequential Mixer Valve (see below)
Chrome Waste
Granite finish	()
Coloured finish	()

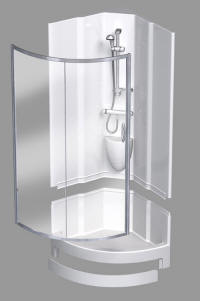

Coram 850 quadrant leak free shower pod diagram

Read more about shower pods

25 year manufacturer warranty

Coram shower pods - Options explained

Shower valve options in Coram shower pods

Coram shower pods are supplied with a thermostatic shower mixer valve. A 'Bar type' thermostatic shower mixer valve is included in the purchase price. However, an 'upgrade' to a concentric type valve is available at additional cost, or the shower pod can be supplied without equipment allowing you to install something else of your choosing (an electric shower for example).

Shower valve specifications

Bar type thermostatic shower mixer valve, hose, riser rail and shower handset

'Bar type' thermostatic mixer valve

Recessed sequential thermostatic shower mixer valve, hose, riser rail, and shower handset

Sequential Concentric recessed thermostatic mixer valve

The 'Bar type' valve operates to a TMV2 level of control. It's operational pressure range is 0.25 bar - 5 bar (suitable for lower pressure, mains pressure and pumped systems). Delivery flow rate range is between 5 and 13 litres per minute.

The 'Sequential type' valve operates to a TMV3 level of control. It's operational pressure range is 0.1 bar - 10 bar (suitable for lower pressure, mains pressure and pumped systems). Delivery flow rate range is between 14 and 35 litres per minute. Equipped with anti-scald rapid cut-off.

So, what is a 'Concentric sequential type' shower valve?

The term 'concentric' essentially means the valve operates in a rotary fashion around a central spindle. A sequential valve, as the name might suggest, operates in a 'sequence' of events. As the operator rotates the handle the valve opens to allow a full flow of water. The temperature of the output water is controlled by continuing to rotate the valve handle (subject to supplies being at temperature), the water temperature increasing the further the valve is rotated. Being a thermostatic valve, once set at your desired temperature the valve will hold the output temperature stable (no nasty hot or cold surprises if other outlets or appliances in the house call for water!)

The sequential valve offers 'easy to grip' single lever operation and a good visual reference to favourite temperature setting.
