Coram 800 Alcove leak free shower pod

Leak free shower pod for an 800mm alcove

DISCONTINUED PRODUCT

800 shower pod for an alcove

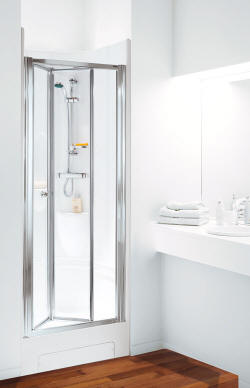

The Coram 800 Alcove Shower Pod is a neat leak-free unit that installs to an alcove. Guaranteed for 25 years, the shower Pod is available with either a polished silver or white bi-fold door. The self contained enclosure is also supplied with a high performance thermostatic bar shower as standard with an option to upgrade to a sequential shower valve (see below).

Coram 800 alcove shower pod

800 x 805mm self contained shower pod
Now available as 2275mm high or 2130mm high
25 year guarantee (Details)
Polished Silver or White bi-fold door
Thermostatic shower included
Moulded bottle shelf
Easy installation
British designed & built
Rigid base with Waterguard protection and access panel for easy maintenance
Door can be changed to a Pivot door if required
Premier Pods feature luxury door frames and finishes
Optima Pods feature standard door frames and finishes
Fitting information

SPECIAL OFFER PRICES
Pod size	Frame colour	Our Price
800 Alcove Premier Pod	Polished Silver
800 Alcove Optima Pod	Chrome
800 Alcove Optima Pod	White



Sequential Mixer Valve (below)
Chrome Waste
Granite finish
Coloured finish

Coram 800 alcove shower pod diagram

Read more about shower pods

25 year manufacturer warranty

Coram shower pods - Options explained

Shower valve options in Coram shower pods

Coram shower pods are supplied with a thermostatic shower mixer valve. A 'Bar type' thermostatic shower mixer valve is included in the purchase price. However, an 'upgrade' to a concentric type valve is available at additional cost, or the shower pod can be supplied without equipment allowing you to install something else of your choosing (an electric shower for example).

Shower valve specifications

Bar type thermostatic shower mixer valve, hose, riser rail and shower handset

'Bar type' thermostatic mixer valve

Recessed sequential thermostatic shower mixer valve, hose, riser rail, and shower handset

Sequential Concentric recessed thermostatic mixer valve

The 'Bar type' valve operates to a TMV2 level of control. It's operational pressure range is 0.25 bar - 5 bar (suitable for lower pressure, mains pressure and pumped systems). Delivery flow rate range is between 5 and 13 litres per minute. Included as standard.

The 'Sequential type' valve operates to a TMV3 level of control. It's operational pressure range is 0.1 bar - 10 bar (suitable for lower pressure, mains pressure and pumped systems). Delivery flow rate range is between 14 and 35 litres per minute. Equipped with anti-scald rapid cut-off.

So, what is a 'Concentric sequential type' shower valve?

The term 'concentric' essentially means the valve operates in a rotary fashion around a central spindle. A sequential valve, as the name might suggest, operates in a 'sequence' of events. As the operator rotates the handle the valve opens to allow a full flow of water. The temperature of the output water is controlled by continuing to rotate the valve handle (subject to supplies being at temperature), the water temperature increasing the further the valve is rotated. Being a thermostatic valve, once set at your desired temperature the valve will hold the output temperature stable (no nasty hot or cold surprises if other outlets or appliances in the house call for water!)

The sequential valve offers 'easy to grip' single lever operation and a good visual reference to favourite temperature setting.
